Eco-Worthy 3500W Solar Off-grid AIO Inverter | 48Vdc to 120Vac | 4400W@145V PV Input

Product image 1
1 / 9

Eco-Worthy 3500W Solar Off-grid AIO Inverter | 48Vdc to 120Vac | 4400W@145V PV Input

AC Input Mode 　
Rated Input Voltage: 110/120VAC Input Voltage Range: 90V-140VAC
Frequency: 50Hz/60Hz(auto detect) Overload/Short Circuit Protection: Circuit breaker
Efficiency: 92% AC Reverse Protection: Available
Max Bypass Overload Current: 40A 　
Invert Mode 　
Output Voltage Waveform: Pure Sine Wave Rated Output Power: 3500W
Rated Output Voltage: 120VAC Peak Power: 6000W
Bypass Breaker: 40A Rated Battery Input Voltage: 48V
Min Starting Voltage: 44V Power Saving Mode: Load ≤50W
AC Charging Mode 　

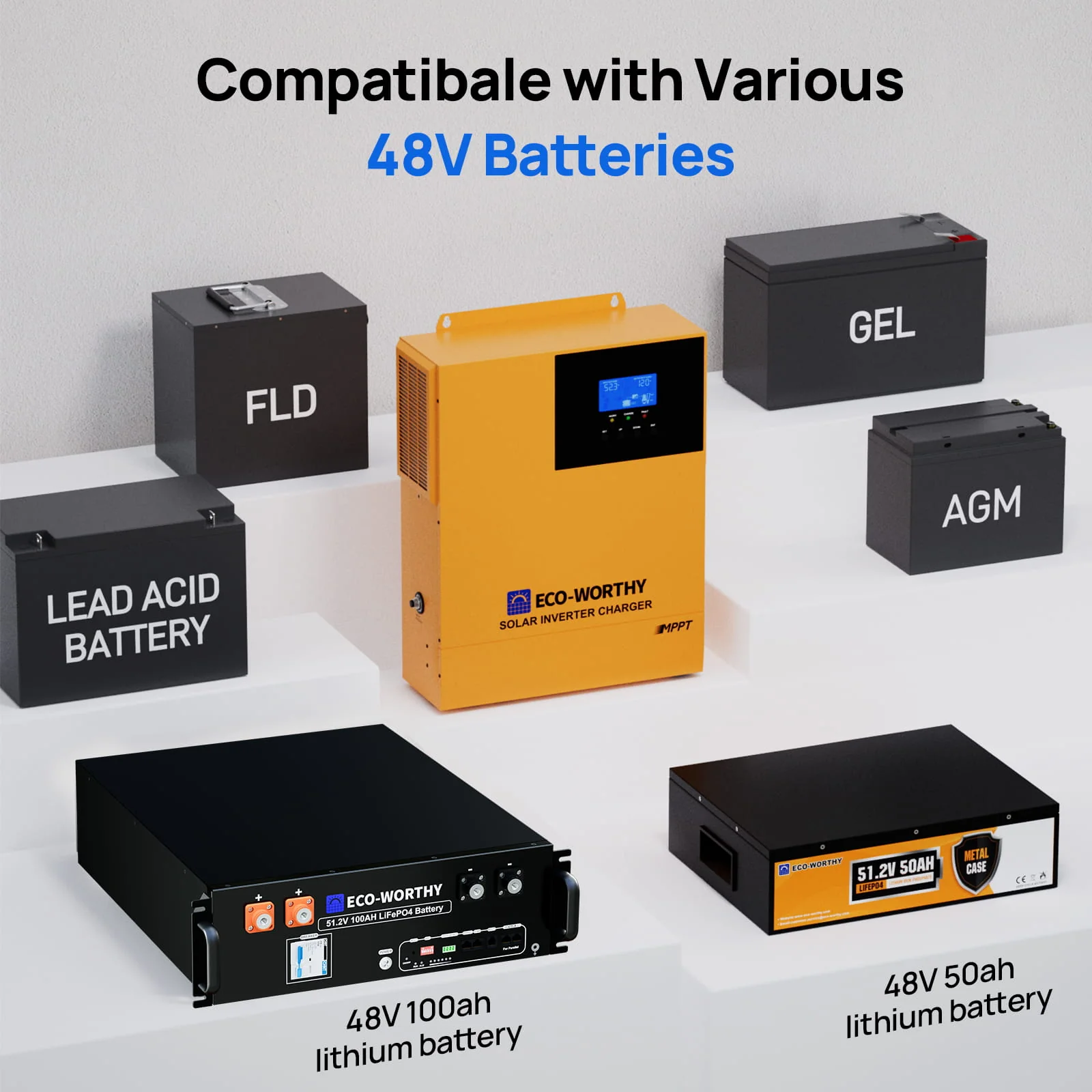

Battery Type: Lead acid or lithium battery Max Charge Current: 40A
Charge Voltage Range: 40-60VDC Overcharge Protection: Alarm and turn off charging after 1 minute
PV Charging Mode 　
Max Input Power: 4400W PV Charging Current Range：0-80A(can be set)
Max PV Open Circuit Voltage: 145VDC PV Operating Voltage Range: 60-145VDC
MPPT Voltage Range: 60-115VDC Battery Voltage Range: 40-60VDC
Max Output Power: 4200W Charging Short Circuit Protection: Blown fuse
$537.28
Eco-Worthy 3500W Solar Off-grid AIO Inverter | 48Vdc to 120Vac | 4400W@145V PV Input—
$537.28

Product Information

Shipping & Returns

Description

AC Input Mode 　
Rated Input Voltage: 110/120VAC Input Voltage Range: 90V-140VAC
Frequency: 50Hz/60Hz(auto detect) Overload/Short Circuit Protection: Circuit breaker
Efficiency: 92% AC Reverse Protection: Available
Max Bypass Overload Current: 40A 　
Invert Mode 　
Output Voltage Waveform: Pure Sine Wave Rated Output Power: 3500W
Rated Output Voltage: 120VAC Peak Power: 6000W
Bypass Breaker: 40A Rated Battery Input Voltage: 48V
Min Starting Voltage: 44V Power Saving Mode: Load ≤50W
AC Charging Mode 　
Battery Type: Lead acid or lithium battery Max Charge Current: 40A
Charge Voltage Range: 40-60VDC Overcharge Protection: Alarm and turn off charging after 1 minute
PV Charging Mode 　
Max Input Power: 4400W PV Charging Current Range：0-80A(can be set)
Max PV Open Circuit Voltage: 145VDC PV Operating Voltage Range: 60-145VDC
MPPT Voltage Range: 60-115VDC Battery Voltage Range: 40-60VDC
Max Output Power: 4200W Charging Short Circuit Protection: Blown fuse
